ieGeek Car Stereo with Reverse Camera,4018 4.1inch LCD Bluetooth MP3/MP4/MP5 Car Stereo + Mini Backup Camera Parking System,12V Car AUX-in/SD Card/USB Stick Audio Music Video Movie Player,FM Radio,Remote Control,Single DIN Size

June 19, 2017

Title : ieGeek Car Stereo with Reverse Camera,4018 4.1inch LCD Bluetooth MP3/MP4/MP5 Car Stereo + Mini Backup Camera Parking System,12V Car AUX-in/SD Card/USB Stick Audio Music Video Movie Player,FM Radio,Remote Control,Single DIN Size
ASIN : B01NCEWYLO
Description :

Stereo description
ieGeek 4018 Bluetooth car MP3 / MP4 / MP5 player
Bluetooth hands-free call
Support car reverse camera (included) input
Audio format: MP3, WAV, FLAC
Video format: AVI, MP4, RMVB, RM, MPG, 3GP, MKV
Multiple EQ sound effect
Support AUX-in

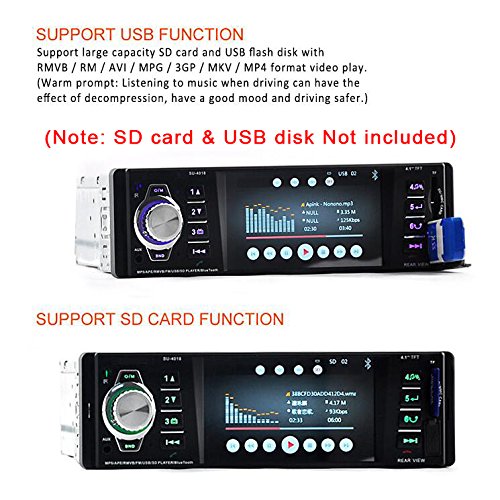

SD card (max. 32GB) / USB flash disk music / video play

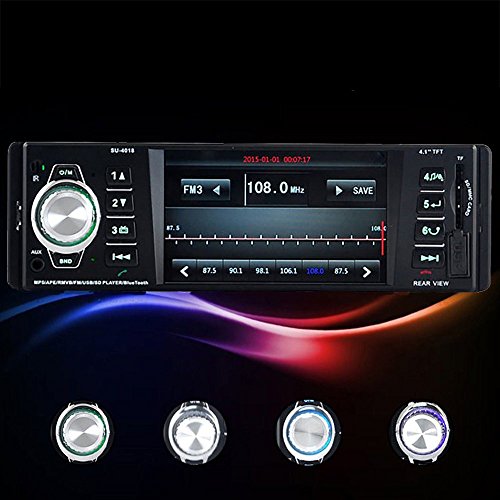

Electronic tuning stereo radio (FM Frequency: 87.5-108MHz)
Power cut memory function
Multiple circuit protection (overload, overvoltage and short circuit protection)
60W x 4 amplifier
12V power supply
Installation space: Single-DIN
Size: 186mm*55mm*124mm
Bluetooth version: V2.0
Bluetooth distance: 10m
Installation note: Yellow wire connects to battery straight and red wire to switch

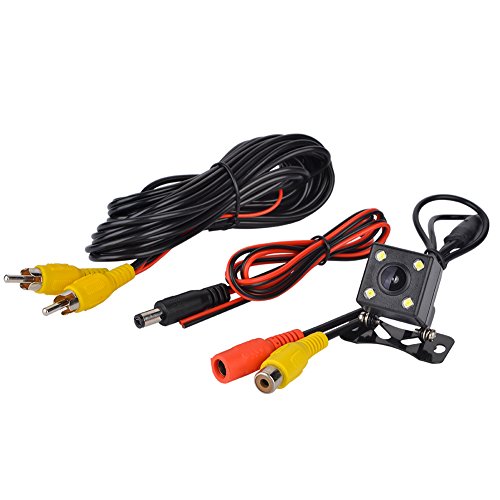

Mini reverse camera description
Effective Pixel: 656 x 492 pixels
Scanning System: 2:1 interface
Night Vision: Yes (4*IR LED)
Resolution: 420TVL
Lens Angle: 170degrees
Sensor Area: 5.961 x 4.276mm
Waterproof: IPX6
Power Supply: DC 12V
RCA Video Cable Length: Approx. 3 meters

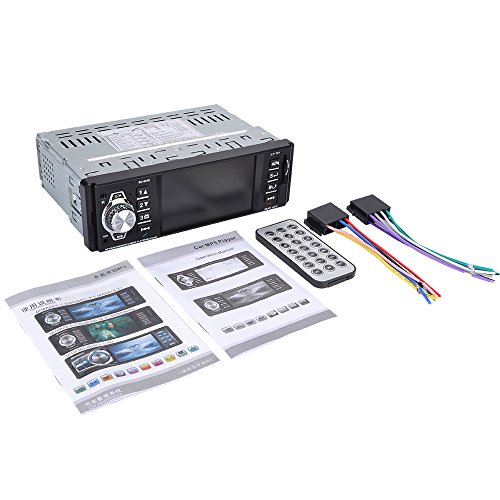

Packing List
1 x Car MP5 stereo
1 x Remote control
1 x Power cable
1 x User manual
1 x Mini rear view camera

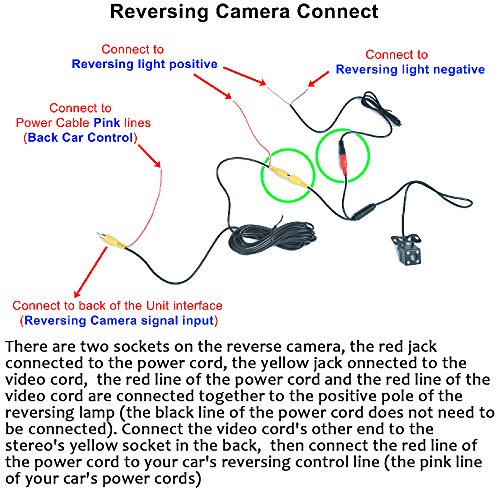

How to connect the rear camera?
There are two sockets on the reverse camera, the red jack connected to the power cord, the yellow jack onnected to the video cord, the red line of the power cord and the red line of the video cord are connected together to the positive pole of the reversing lamp (the black line of the power cord does not need to be connected). Connect the video cord's other end to the stereo's yellow socket in the back, then connect the red line of the power cord to your car's reversing control line (the pink line of your car's power cords) (Please view the 6th image of the wiring diagram ).

Features :

✅ 4.1inch 16:9 HD TFT LCD, automatic conversion colorful backlight buttons and 24 hours digital Clock, Date
✅ Support car reverse camera (included) input
✅ Support bluetooth hands-free calling and remote control (with mute) function
✅ Support power output can charge (5V) for mobiles or other USB devices
✅ Universal 1 DIN space (about 2" height) installation. Fit for Fiat Punto 1999-2009, Peaugot, Audi, VW, Renault and More.
